DFMPro for Assembly

DFMPro is an automated tool which supports several common assembly level checks which help address functional requirements, avoid rework and improve quality. Some of the common assembly checks include hole alignment, clearance measurement and interference detection among others.

Assembly considerations during design:

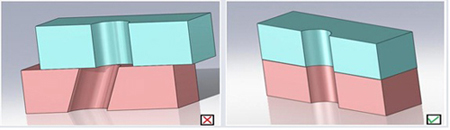

Hole Alignment

Checking for proper alignment of holes at the design stage ensures that such problems are avoided during assembly. Hole alignment problems during assembly can lead to rework, loss of productivity, scrap, etc.

Assembly considerations during design
