Powerful Design for Manufacturing(DFM) Software-DFMPro

Deliver High Quality Designs Faster at Lower Costs

Winning in today’s global marketplace requires more than just creating innovative product designs. Sustainable competitive advantage requires speed to market and strong margins. To succeed, you must design products right the first time for optimal manufacturing, cost, quality, time, and functionality.  .

DFMPro, a CAD-integrated design for manufacturing software helps you identify and correct downstream issues early in the design stage, leading to reduction of cycle time and, in turn, resulting in high-quality products with lower product development costs.

Request a Demo

Why DFMPro

Early Visibility into Manufacturing & Cost with Design for Manufacturing Software

DFMPro is well integrated within CAD platforms like Creo ParametricTM (formerly Pro/E), SOLIDWORKS®, NXTM and CATIA V5TM which ensures that users are able to identify and rectify design for manufacturing checks within their own CAD platform.

20%

Reduction in
Rework

12%

Reduction in
Manufacturing Cost

10%

Improved time to
Market

10%

Increase in Engineering
Productivity

HCL DFMPro for Creo Parametric Creo

DFMPro is a powerful DFM software for Creo platform, fully integrated inside PTC Creo Parametric.  It enables design engineers to make informed design decisions and identifies and addresses downstream manufacturability, assembly, quality and serviceability (DFX) related issues during early design stage.

Request Demo

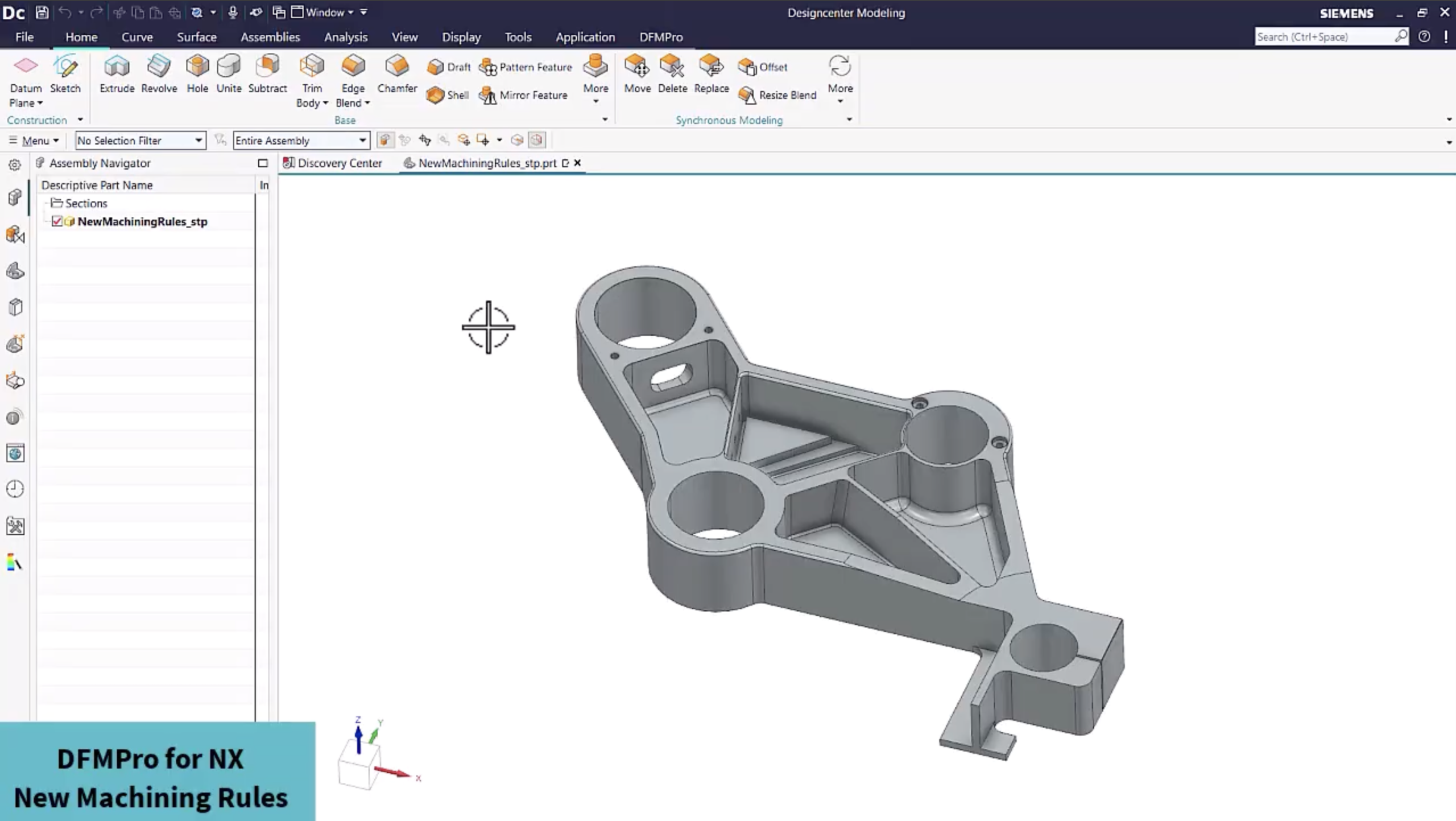

HCL DFMPro for NX NX

DFMPro for NX™, a best practice driven design for manufacturing (DFM) software integrated within NX™, helps design engineers identify and evaluate their designs for downstream manufacturability, assembly, quality, serviceability, (DFX) related issues upfront and reduce unnecessary rework and engineering changes.

Request Demo

HCL DFMPro for SOLIDWORKSSolidworks

DFMPro for SOLIDWORKS is a DFM software for SOLIDWORKS CAD platform that helps designers to check their designs for manufacturability and assembly within SOLIDWORKS interface and take corrective actions without multiple rounds of design iterations. The results can be visualized and interpreted conveniently in a 3D environment, making DFM validation process highly simple and cost effective.

Request Demo

HCL DFMPro for CATIA V5 CATIA V5

DFMPro is an easy-to-use Design for Manufacturing (DFM) solution, fully integrated inside CATIA V5 that can identify & correct potential downstream manufacturing issues leading to reduction of cycle time and, in turn, resulting in high-quality products with lower product development costs offers.

Request Demo

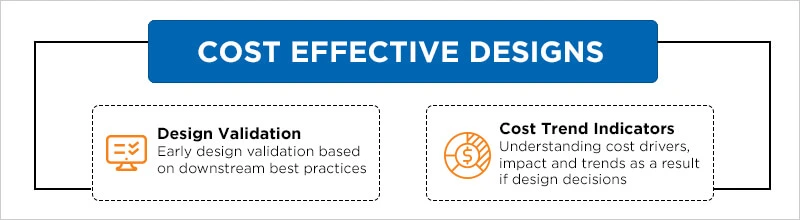

DFMPro Cost Add-on

DFMPro cost add-on provides early cost visibility to design engineers right from when designs are getting created

  • Evaluates design choices based on material,features, geometry & manufacturing regions
  • Identifies expensive design features impacting cost due to manufacturability and get recommendations for cost reduction
  • Tracks the cost as designs are getting created
  • Apply standarization and component re-use

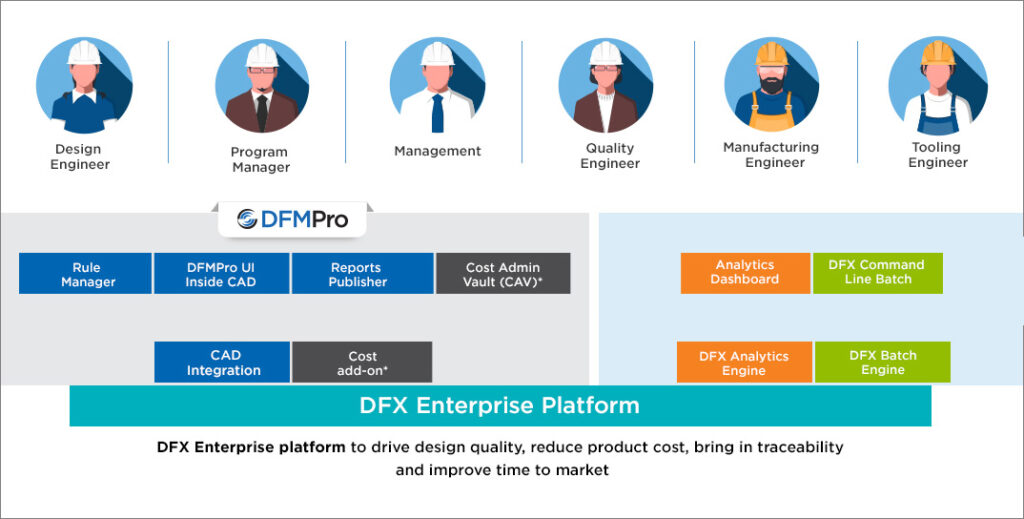

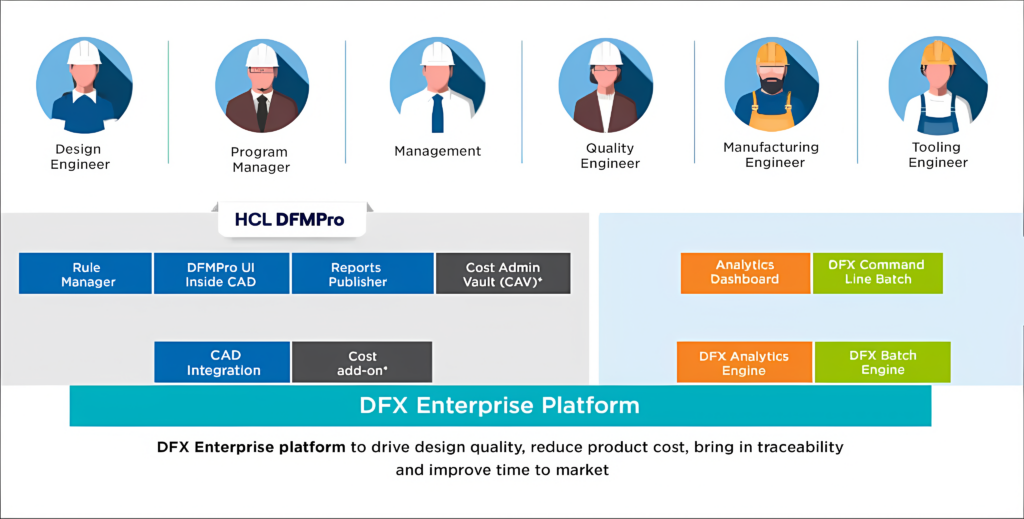

DFX Platform

Video Gallery

DFMPro Delivers Results

Now 3D design data of our products are checked by the DFMPro in the design process. Our conventional checking process by designers was highly time-consuming. In contrast, theDFMPro checking is truly fast and reliable in searching the parts to be redesigned or corrected, and the checking criteria can be customized for the appropriate checking of our own products.
As a result, we successfully reduced 75% of the checking time of the wall thickness to enhance the efficiency and effectiveness of our design improvement before the release of drawings.”
