DFMPro Gallery

Click on the images below to see sample DFMPro files.

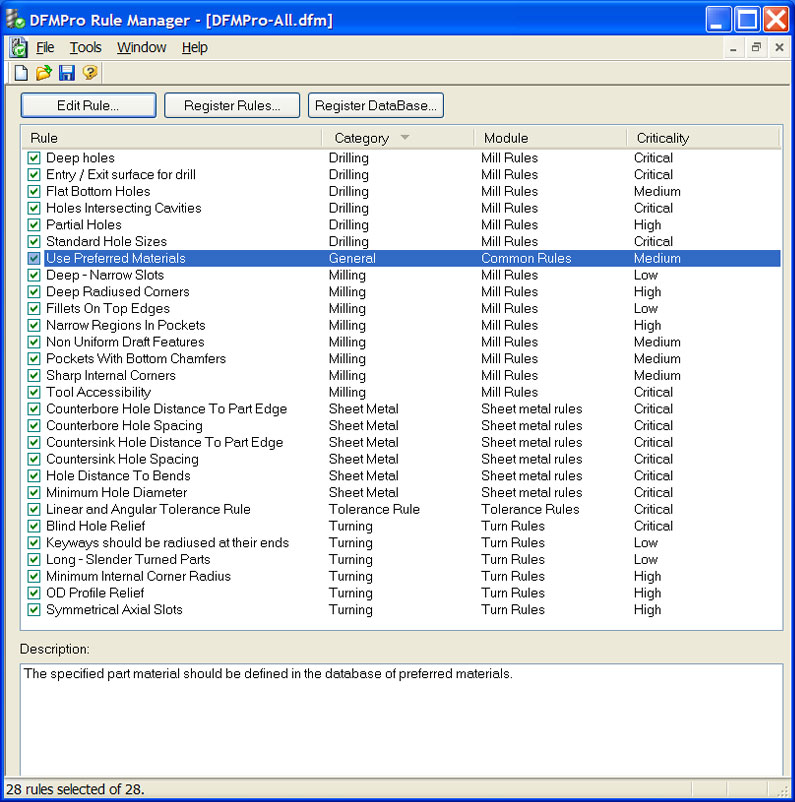

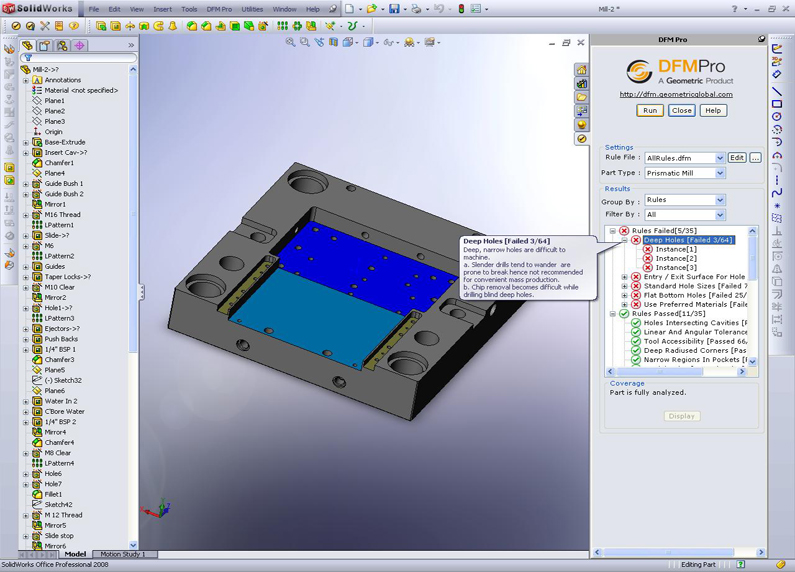

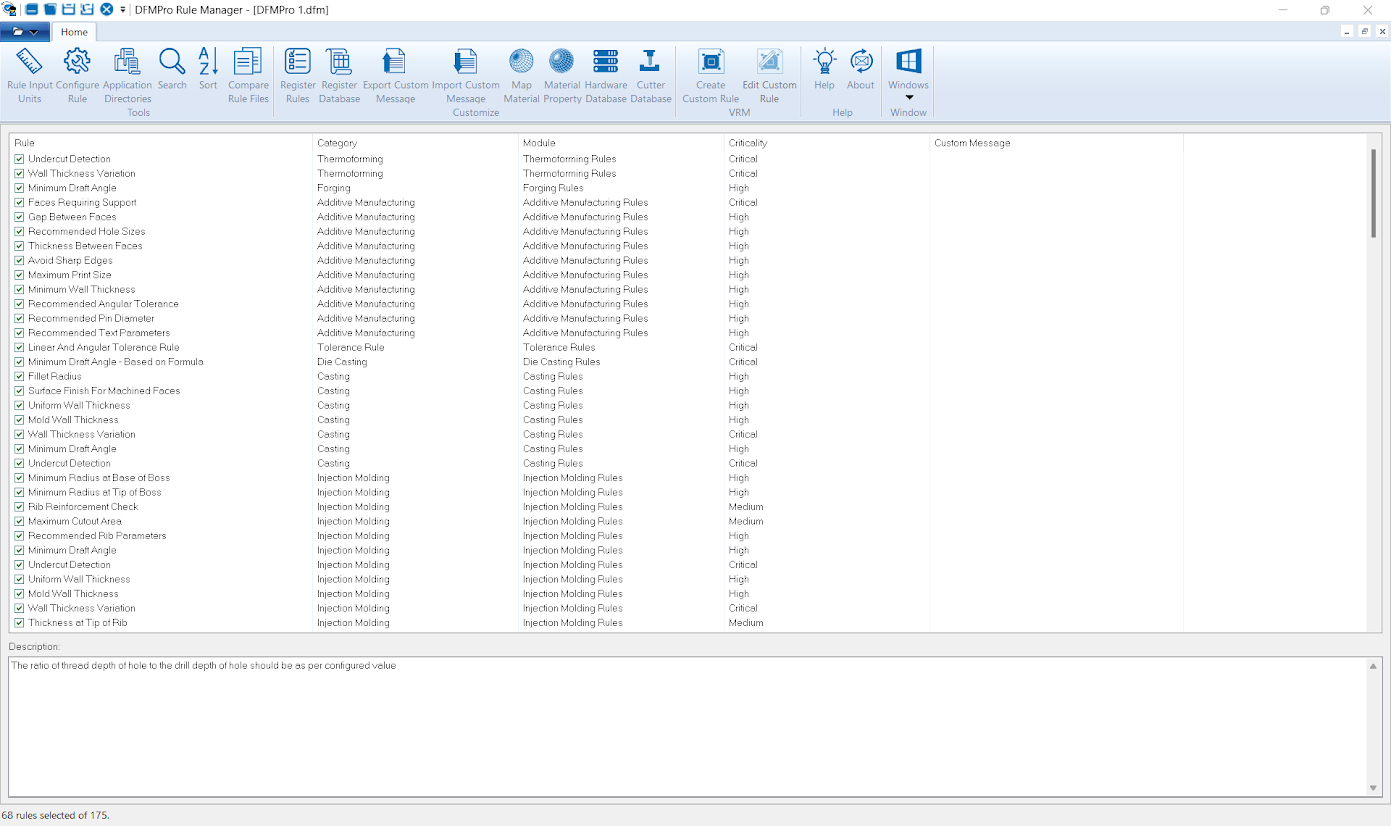

DFMPro Analysis outputDFMPro Configuration Interface

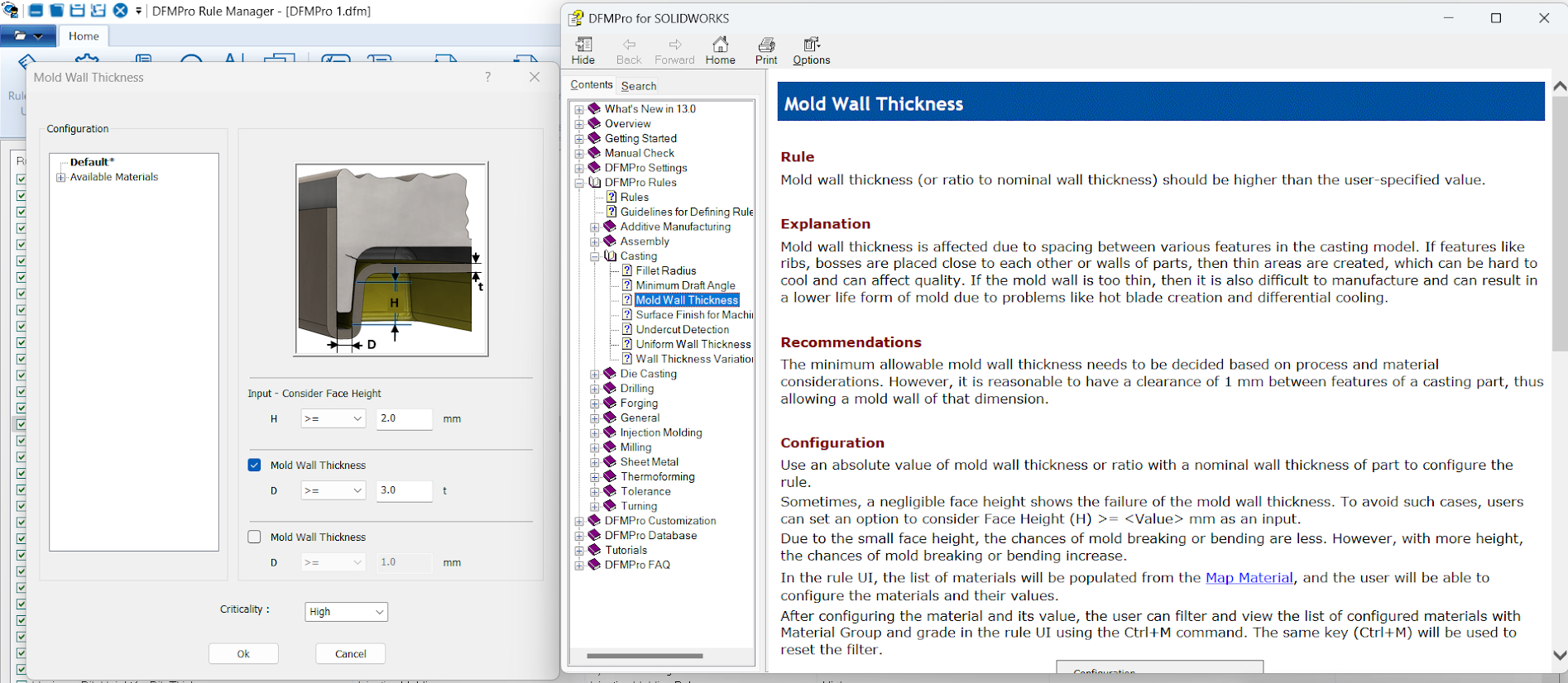

DFMPro® Analysis OutputDFMPro® Configuration InterfaceDFMPro® Configuration Interface

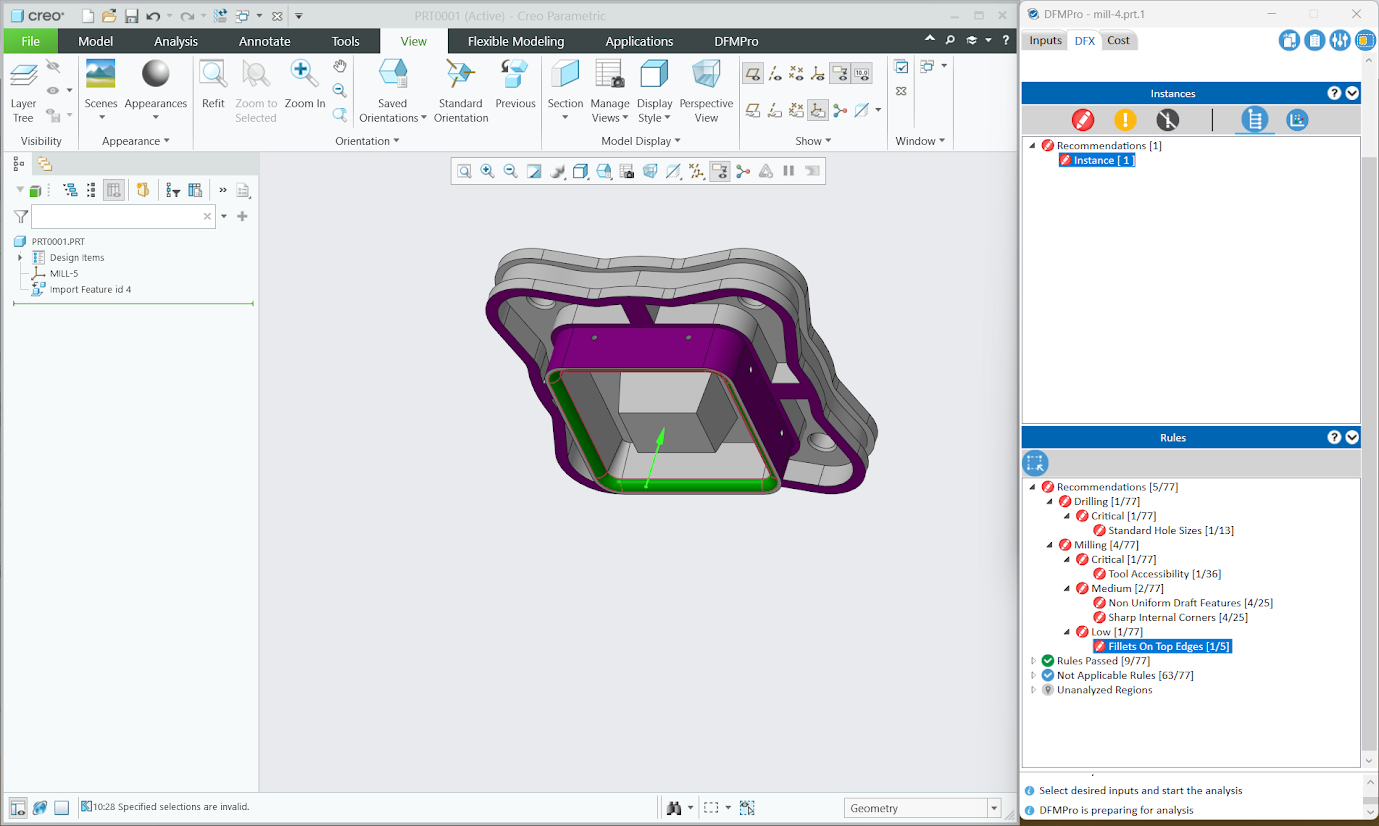

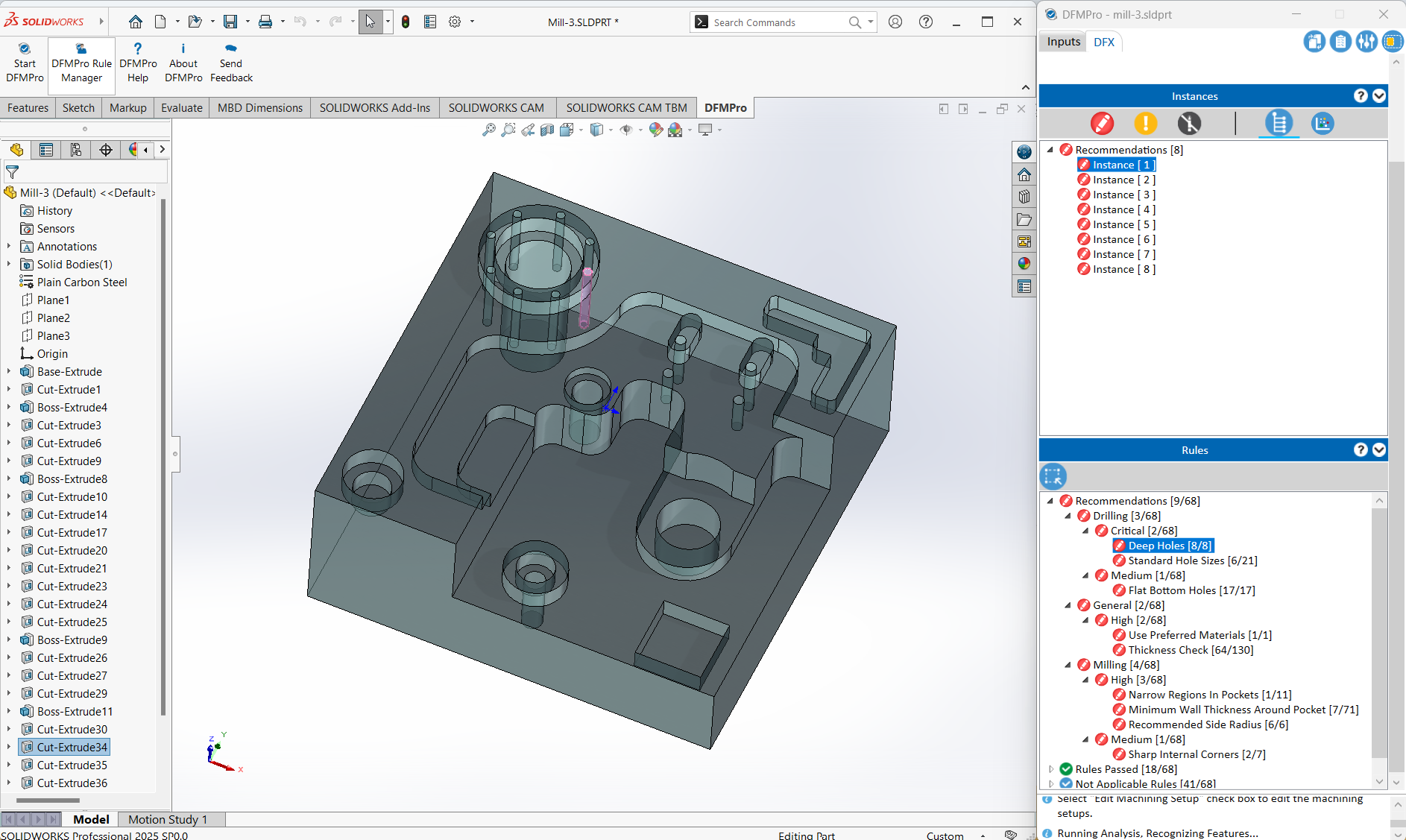

Sharp internal corners are
difficult to machine

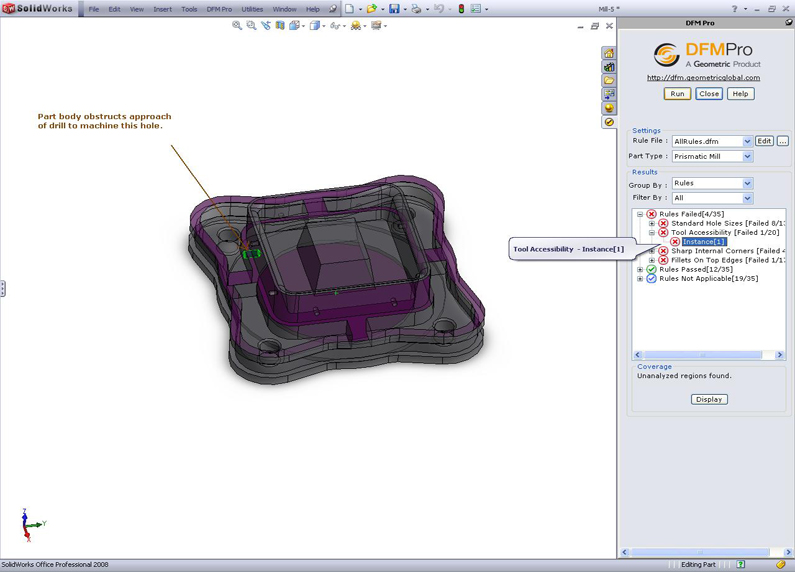

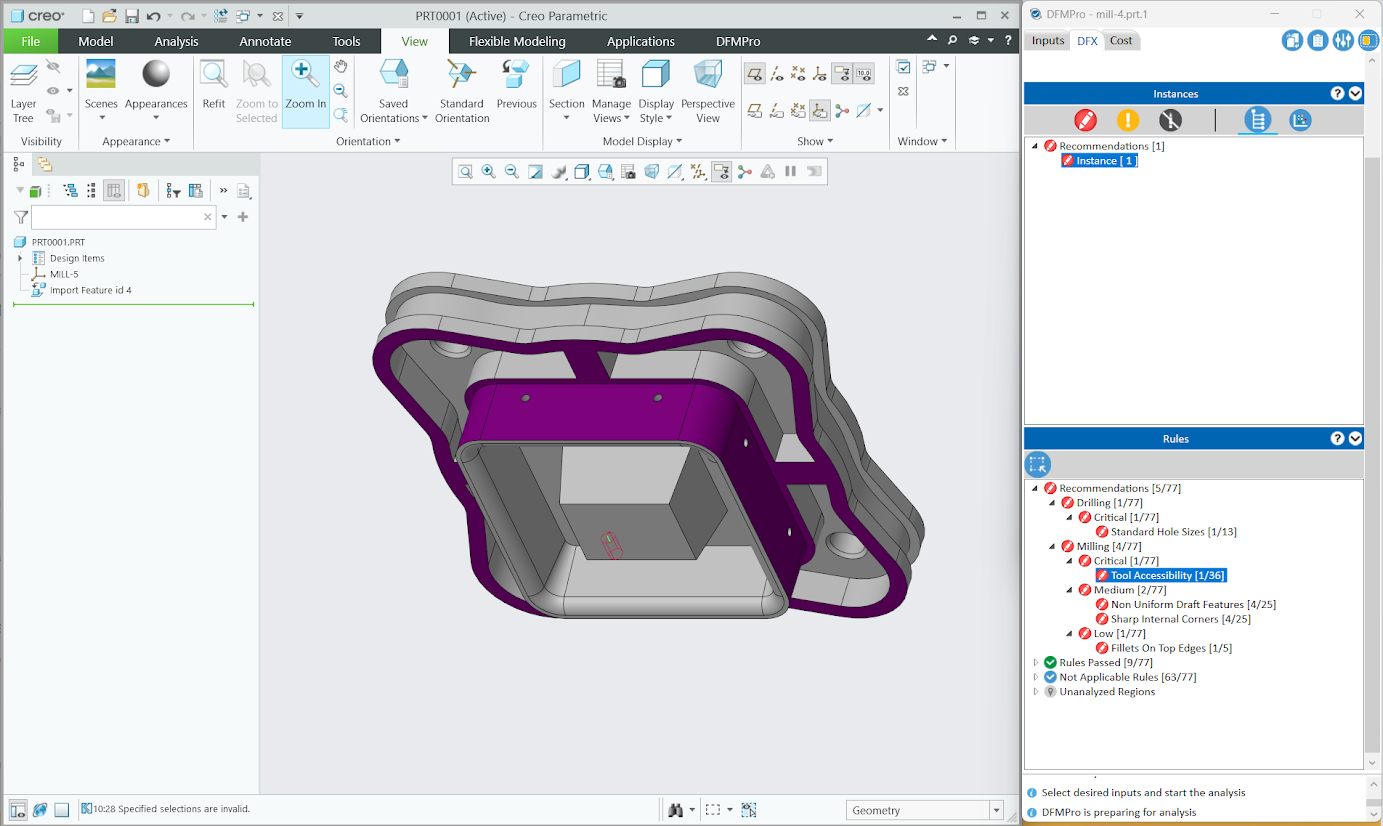

DFMPro points out regions that are
not easily accessible for the cutting tool

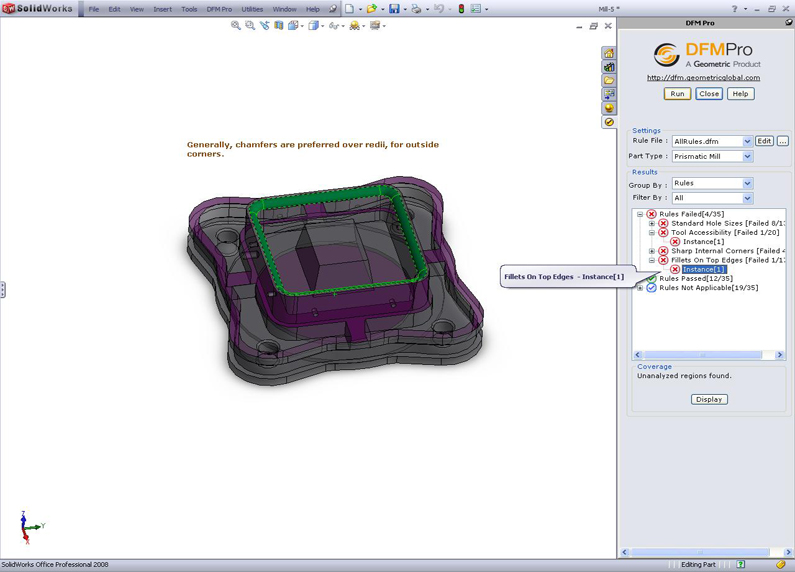

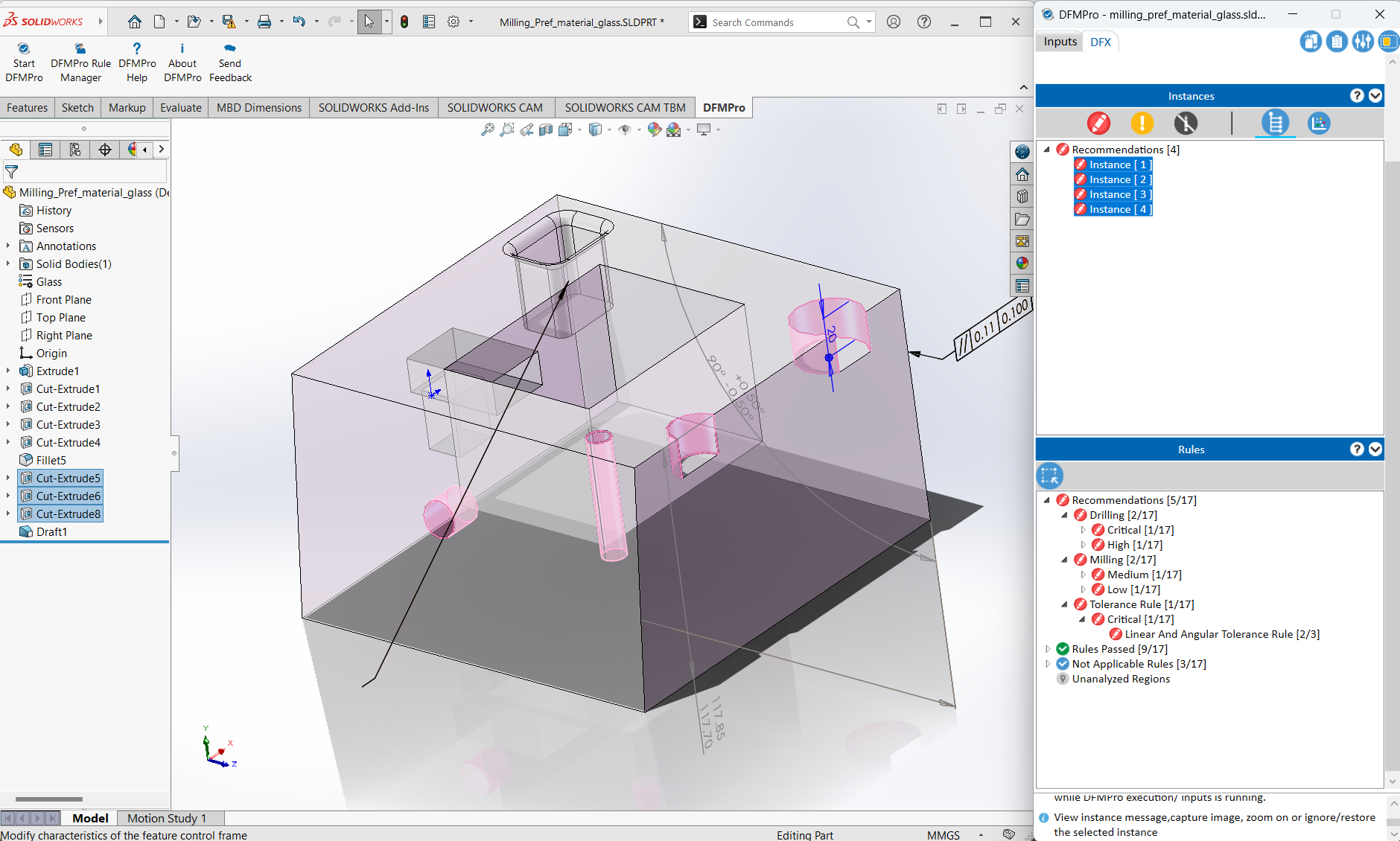

DFMPro points out areas that are
expensive & recommends an alternative

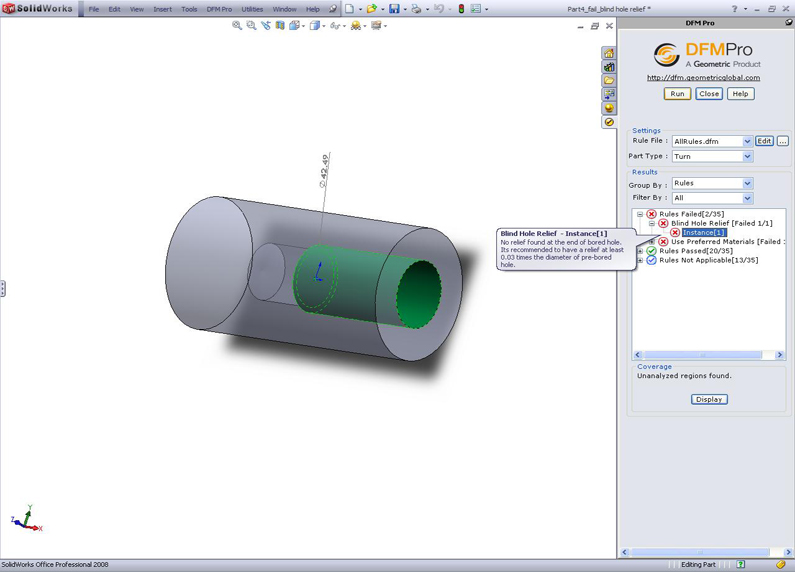

Adequate clearance for the cutting tool

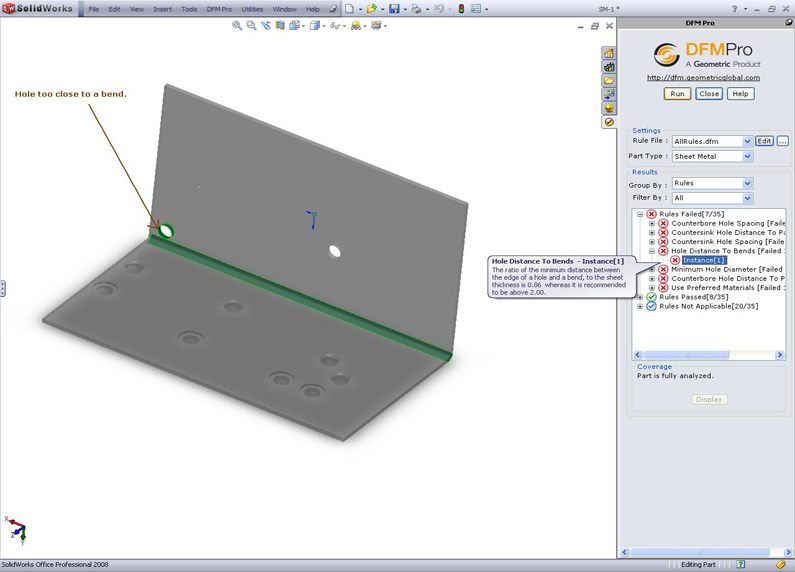

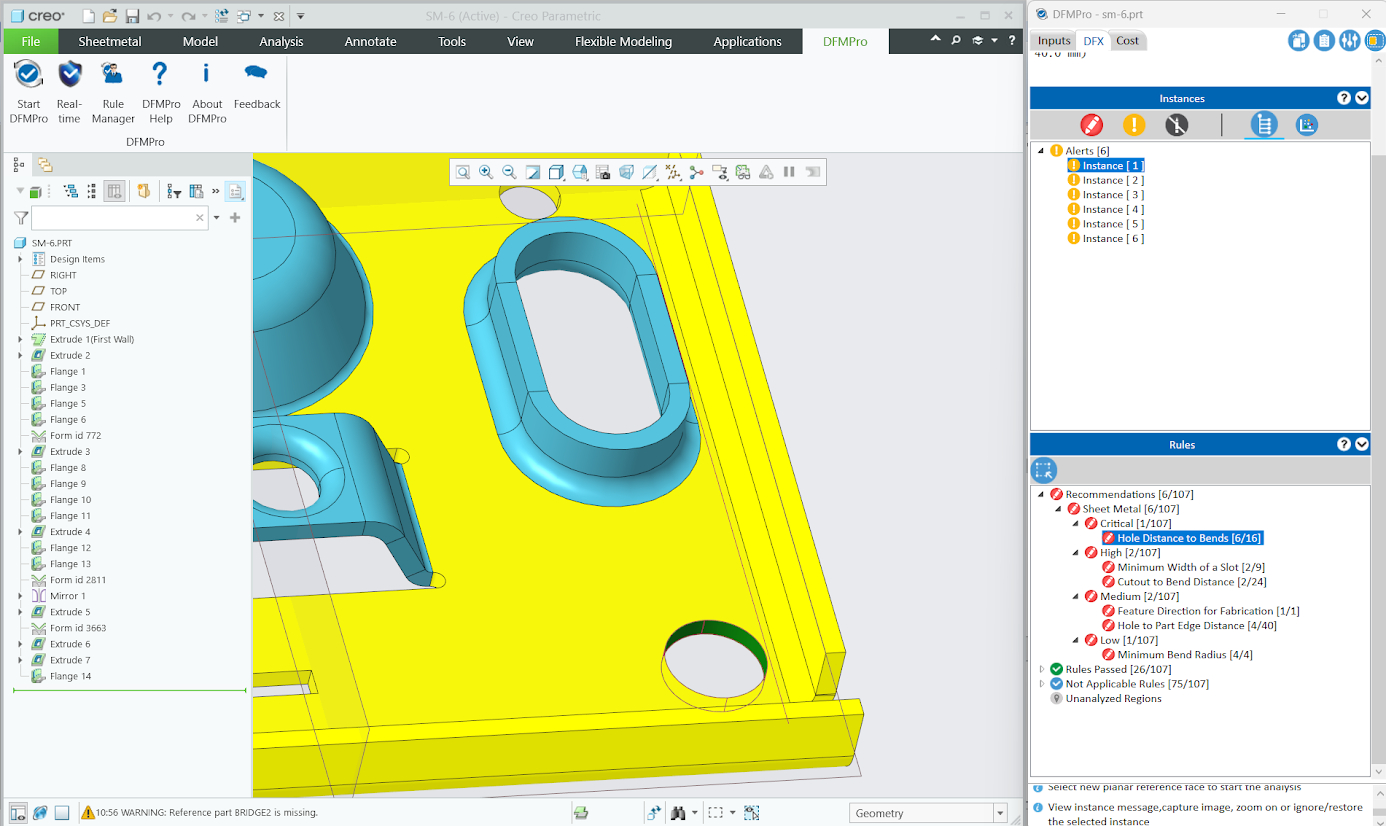

Sheet Metal – Fabrication DFMPro
points out holes that are close to bends

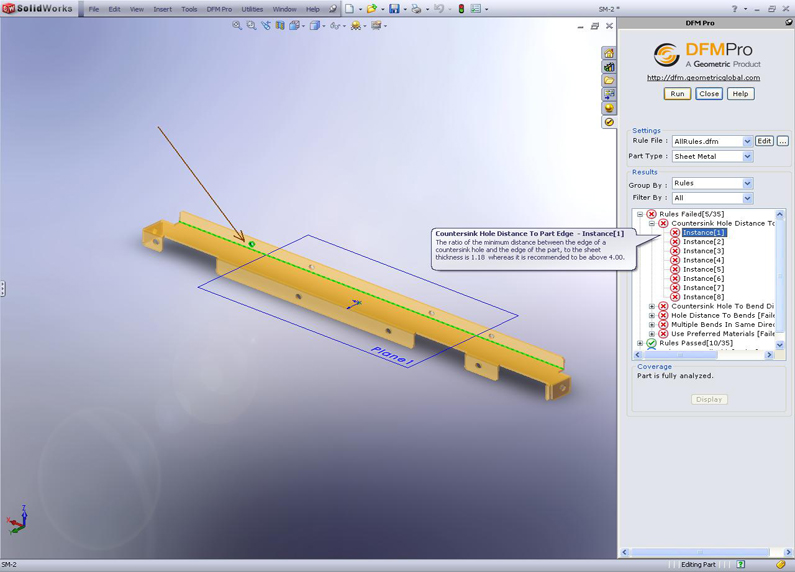

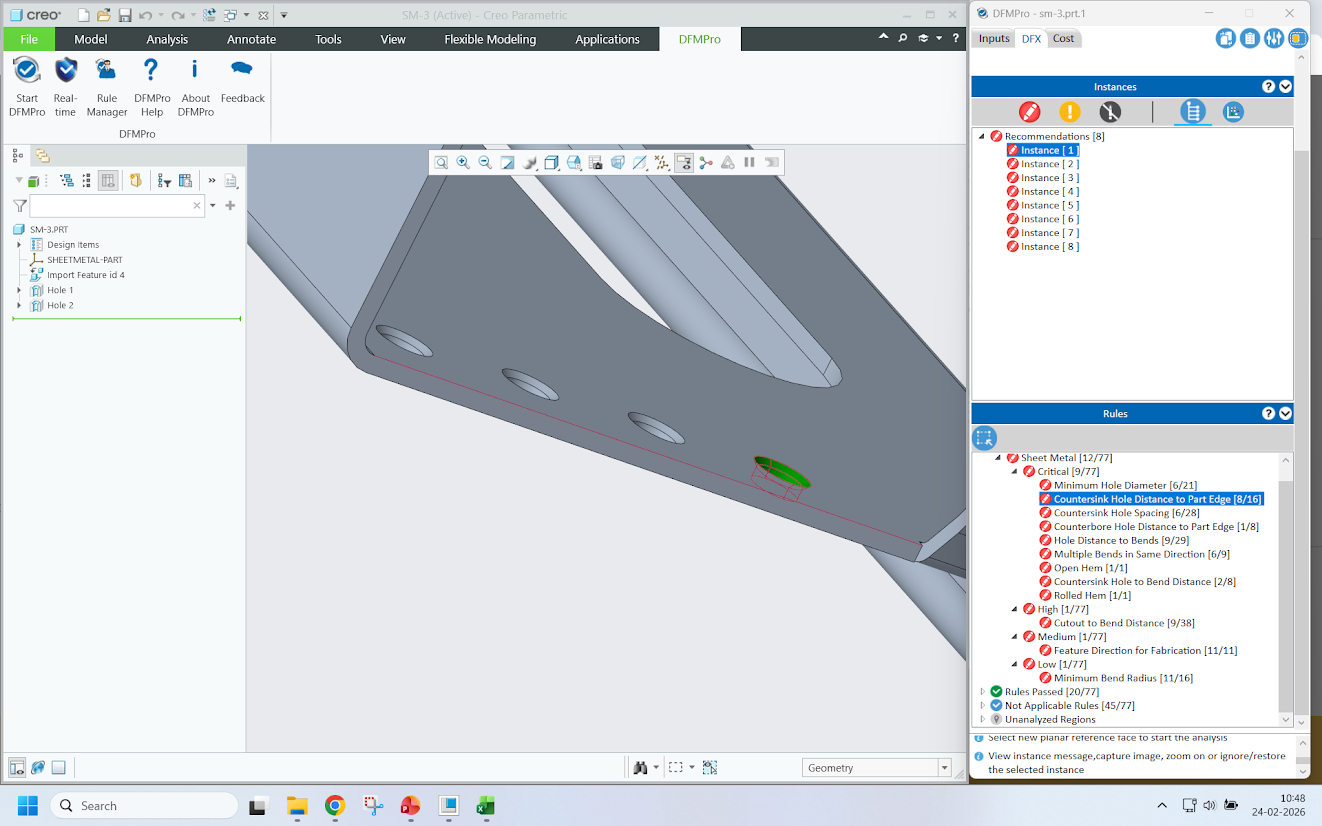

DFMPro points out holes
that are close to edge

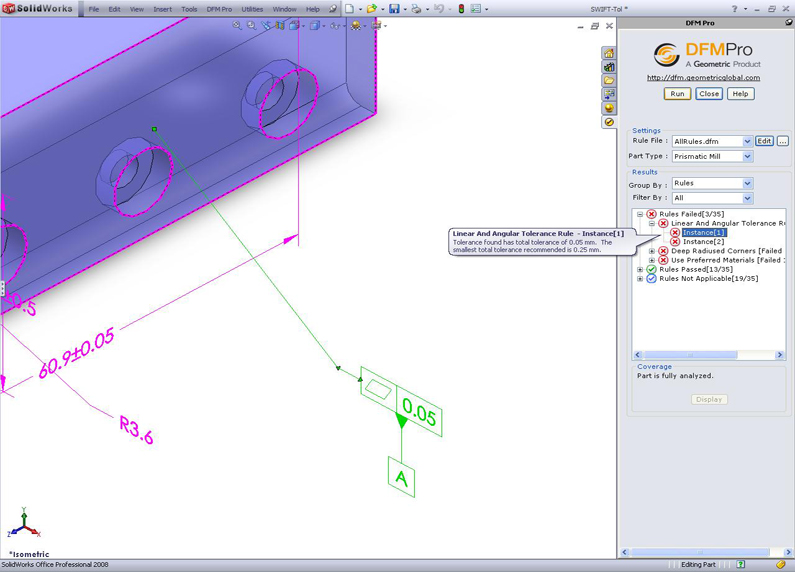

Tolerance Specifications
DFMPro identifies stringent tolerances that influence the cost of manufacturing. Designer can have a re-look at those so that they are specified no tighter than necessary for the functional requirement.

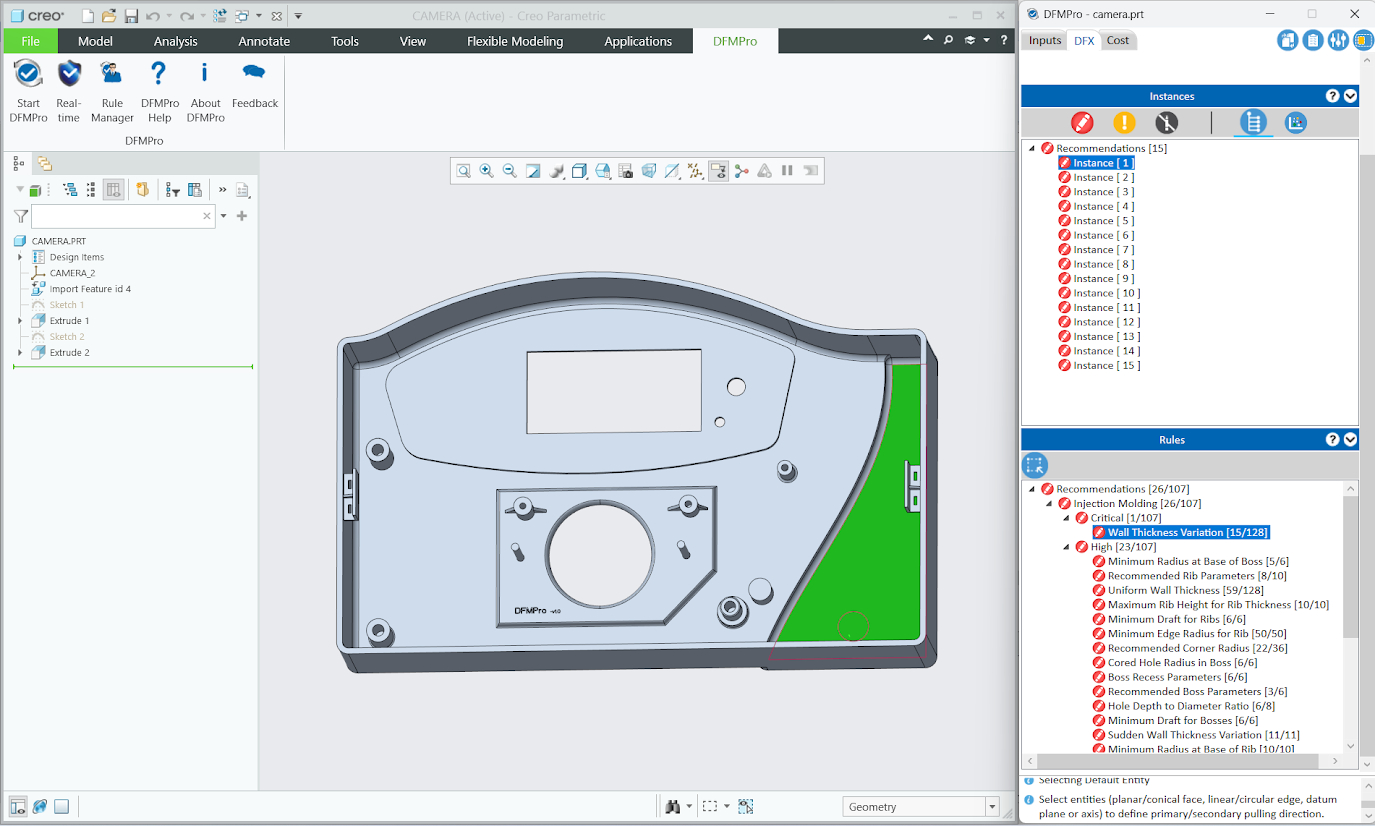

Injection Molding
DFMPro for Pro/Engineer identifies
cut out areas which could lead to
creation of weak section.

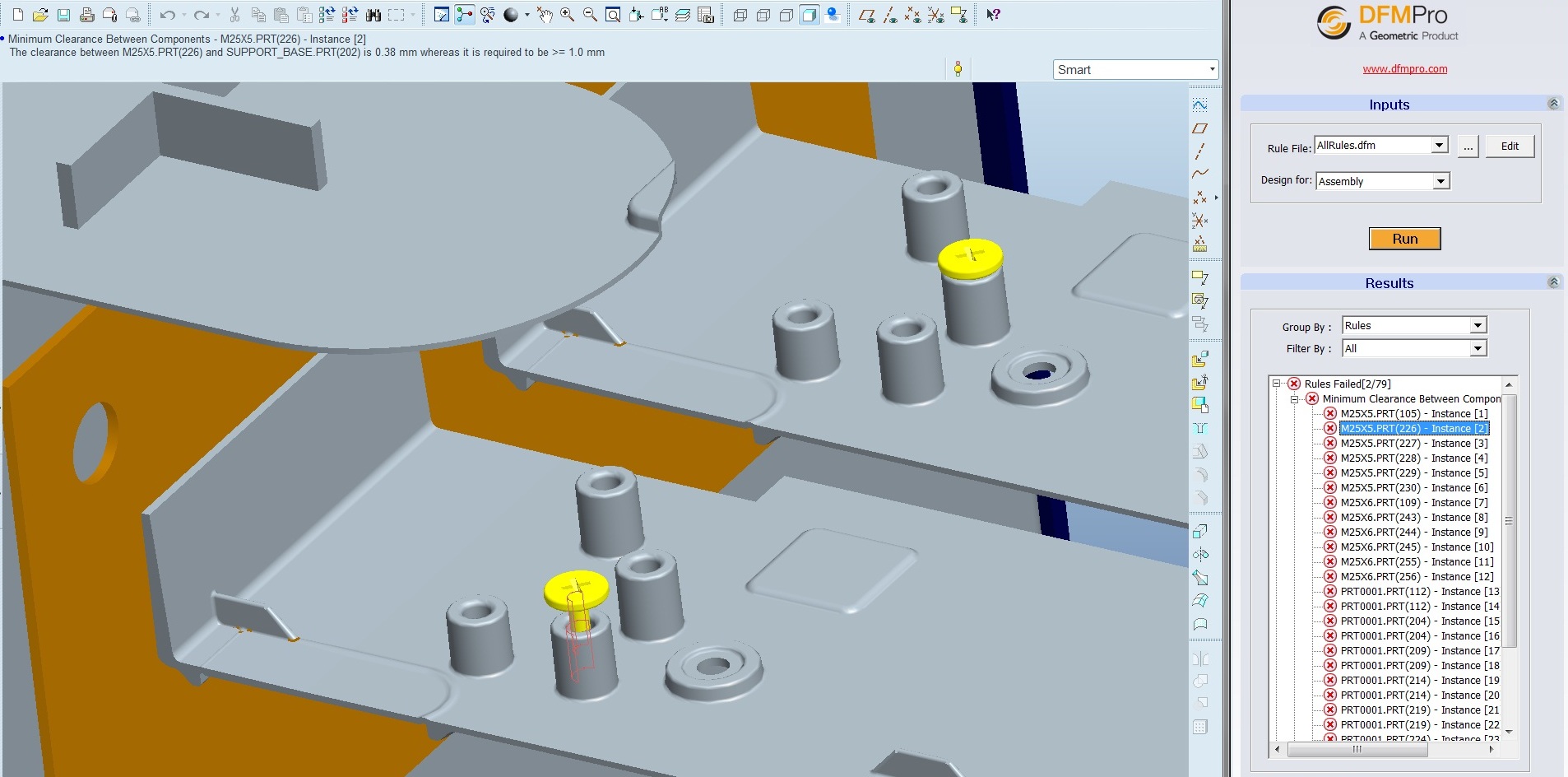

DFMPro for Pro/Engineer
highlighting clearance between
fastener and supporting base.
